Casa /Produtos/Máquina de testes da vibração/High Performance Vibration Testing Machine with 1000m/s2 Max Acceleration 6.5kg Moving Coil and 25mm Impact Displacement

High Performance Vibration Testing Machine with 1000m/s2 Max Acceleration 6.5kg Moving Coil and 25mm Impact Displacement

1
MOQ
High Performance Vibration Testing Machine with 1000m/s2 Max Acceleration 6.5kg Moving Coil and 25mm Impact Displacement
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Faixa de frequência: 5Hz a 3500Hz
Aceleração máxima: 1000m/s2
Velocidade máxima: 1,6m/s
Deslocamento do impacto: 25mm
Peso da bobina móvel: 6,5 kg
Sentidos da vibração: Vertical e horizontal
Onda de vibração: Sinus, aleatório, choque
Tamanho da bobina em movimento: Dia. 230 mm
Força senoidal nominal: 6000N
força aleatória avaliado: 6000N
Aceleração nominal: 1000m/s2
Velocidade nominal: 1,6m/s
Deslocamento nominal: 25mm
Carregamento máximo: 180 kg
Tipo de energia: Eletrônico
Destacar:

1000m/s2 Max Acceleration Vibration Testing Machine

,

6.5kg Moving Coil Vibration Test System

,

25mm Impact Displacement Electrodynamic Vibration Shaker
Informação básica
Lugar de origem: Guangdong, China
Marca: ASLI
Número do modelo: ES-6
Condições de Pagamento e Envio
Descrição de produto
5-500Hz Horizontal Vertical Vibration Test Machine
Product Overview
The 5-500Hz Horizontal Vertical Vibration Test Machine performs sinusoidal vibration tests, broadband random vibration tests, and classic pulse tests (half sinusoid, trapezoid, back peak saw tooth) including shock response spectrum testing. When combined with a climate chamber, it enables comprehensive mechanical and environmental condition testing.
This high-frequency vibration test system is extensively used in defense, weapons, aerospace, communications, electronics, appliances, transportation, and household appliance industries. Custom configurations are available to meet specific environmental testing requirements.
Technical Specifications
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p)mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-3 3000 3000 3-3500 1000 1.6 25 100 3.5 Φ150
ES-3a 3000 3000 3-3500 400 1.6 40 120 9 Φ230
ES-6 6000 6000 3-3500 1000 1.6 25 180 6.5 Φ230
Vertical Expander Features
The VT vertical extended-bench features precision-calculated, specially designed clamps that deliver optimal performance through perfect structure, high-quality materials, and superior workmanship.
High Performance Vibration Testing Machine with 1000m/s2 Max Acceleration 6.5kg Moving Coil and 25mm Impact Displacement 0

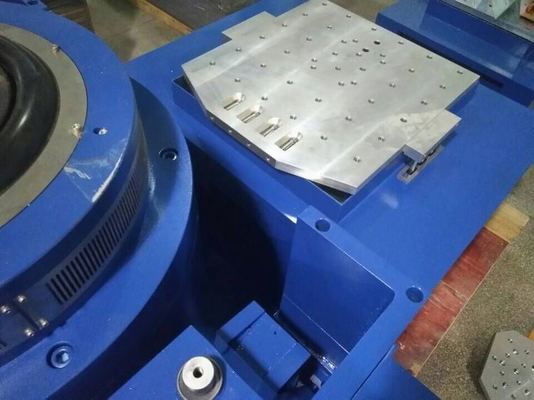

Horizontal Expander Features
  • Small loading bench enables higher acceleration and working frequency
  • Improved loading capacity and overall machine performance
  • Integral horizontal bench and vibration bench design for easy installation and adjustment
  • Static pressure V-shape track with slope-resistant and bias-loading resistant capacity
  • Built-in oil pump with excellent structure and easy operation
High Performance Vibration Testing Machine with 1000m/s2 Max Acceleration 6.5kg Moving Coil and 25mm Impact Displacement 1

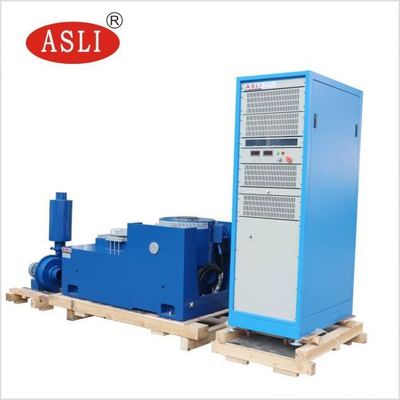

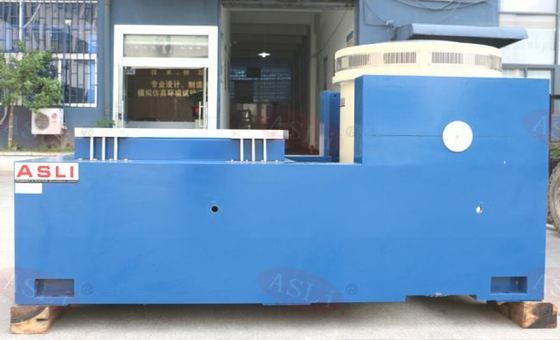

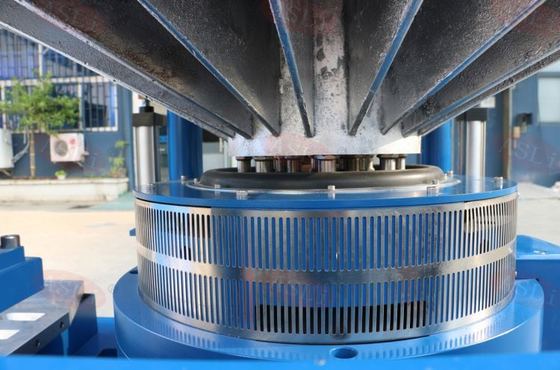

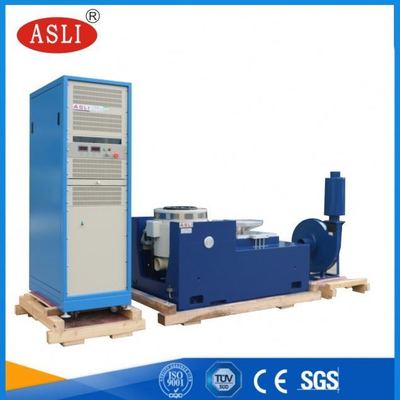

Product Gallery
High Performance Vibration Testing Machine with 1000m/s2 Max Acceleration 6.5kg Moving Coil and 25mm Impact Displacement 2 High Performance Vibration Testing Machine with 1000m/s2 Max Acceleration 6.5kg Moving Coil and 25mm Impact Displacement 3 High Performance Vibration Testing Machine with 1000m/s2 Max Acceleration 6.5kg Moving Coil and 25mm Impact Displacement 4
Our Service
  • High quality guarantee
  • Professional documentation with shipment
  • Custom packing available with pre-shipment photos
  • 48-hour response time with solutions within 3 working days
  • Professional engineering after-service support
  • 12-month warranty period
Company Profile
With 28 years of experience, we specialize in simulation environmental testing equipment and mechanical vibration/shock testing machines. Our lab package simulated vibration test equipment with slip table is CE certified and represents our flagship product line.
High Performance Vibration Testing Machine with 1000m/s2 Max Acceleration 6.5kg Moving Coil and 25mm Impact Displacement 5
