Características

Especificações

Precisão: 0.1

Poder: 40kva

Classe de proteção: IP55

Tensão: 380V

Direção de vibração: Horizontal Vertical

Vigor: 20kn

Deslocamento: 51mm

Aceleração: 100g

Carga máxima: 270 kg

Faixa de frequência: 3-3500 Hz

Velocidade nominal: 1,6 m/s

Peso da bobina móvel: 14 kg

Diâmetro movente da bobina: Φ240 mm

Força senoidal nominal: 10000 N

força aleatória avaliado: 10000 N

Destacar:

0.1 Accuracy Vibration Testing Machine

40kva Power Laboratory Shaker Table

IP55 Protection Vibration Analysis Device

Informação básica

Lugar de origem: Cantão, China

Marca: ASLI

Condições de Pagamento e Envio

Galeria

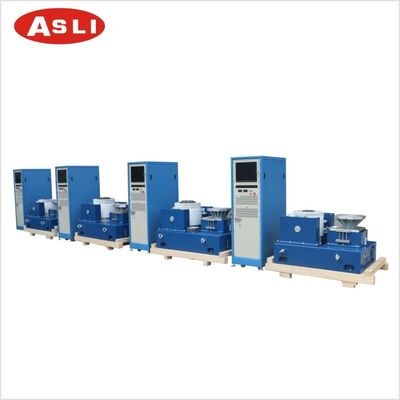

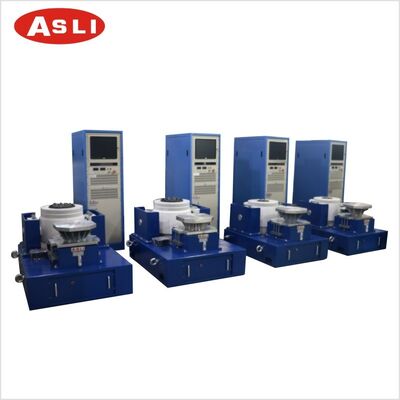

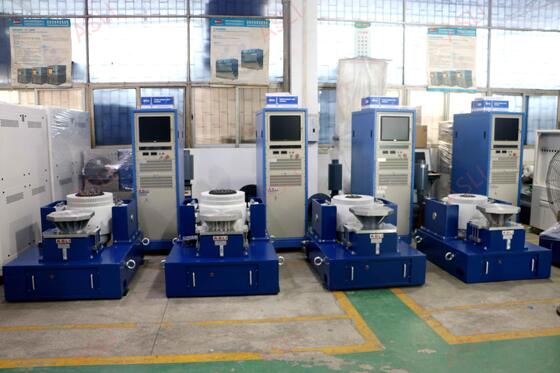

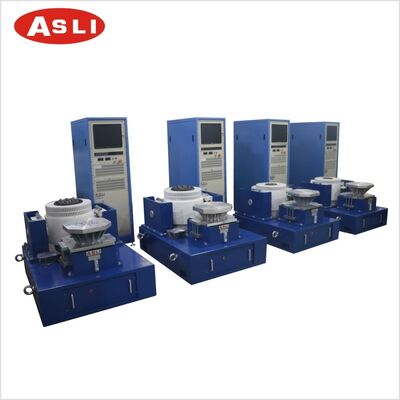

High-Precision 0.1 Accuracy Vibration Testing Machine with 40kva Power and IP55 Protection for Laboratory Shaker Table

Descrição de produto

Automatic Bearing Vibration Testing Machine

Laboratory Shaker Table & Vibration Analysis Device

High-Precision Vibration Testing and Analysis Equipment for Bearings, Motors, and Mechanical Parts — Laboratory Shaker Table for Reliability, Fatigue, and Dynamic Performance Evaluation

Applications

This automatic bearing vibration testing machine is primarily used for product vibration and shock environmental testing, environmental stress screening, and reliability testing. It serves industries including aerospace, communications, electronics, electrical, and home appliances. The platform meets various test specifications including IEC, MIL-STD, JIS, and ASTM standards.

Technical Specifications

Model	Rated Sine Force (N)	Rated Random Force (N)	Frequency Range (Hz)	Rated Acceleration (m/s²)	Rated Speed (m/s)	Rated Displacement (p-p) mm	Max. Loading (Kg)	Moving Coil (Kg)	Dimension of Moving Coil (mm)
ES-3	3000	3000	3-3500	1000	1.6	25	100	3.5	Φ150
ES-3a	3000	3000	3-3500	400	1.6	40	120	9	Φ230
ES-6	6000	6000	3-3500	1000	1.6	25	180	6.5	Φ230
ES-6a	6000	6000	3-3500	1000	1.6	51	250	12	Φ230
ES-10	10000	10000	3-3000	1000	1.8	51	270	14	Φ240
ES-20	20000	20000	3-3000	1000	1.8	51	300	30	Φ320
ES-30	30000	30000	3-2800	1000	1.8	51	450	40	Φ450
ES-40	40000	40000	3-2800	1000	1.8	51	500	50	Φ450
ES-50	50000	50000	3-2700	1000	1.8	51	750	50	Φ450
ES-60	60000	60000	3-2700	1000	1.8	51	750	60	Φ450
ES-100	100000	100000	3-2500	1000	1.8	51	1000	90	Φ450
ES-120	120000	120000	3-2200	1000	1.8	51	1100	90	Φ500
ES-160	160000	160000	3-2100	1000	1.8	51	1500	150	Φ600
ES-200	200000	200000	3-2000	1000	1.8	51	2500	200	Φ650
ES-350	350000	350000	3-1700	1000	1.8	51	4500	300	Φ870

Key Features

Flexible suspension system with straight line guide for strong bearing capacity and high stability
Central load airbag with large static stiffness and small dynamic stiffness for excellent performance
Rapid self-examination diagnosis and chain protection for high safety and reliability
Air bag isolating and damping device eliminates need for special foundation while reducing vibration transmission
Horizontal and vertical expansion platforms available for different applications
Compatible with various vibration controllers for simple operation
